10 Ton Tube Ice
- Strong and Durable parts : All compressor and refrigerant parts are world first class.
- Compact structure design. : Almost no need installation and Space Saving.
- Low-power consumption and minimal maintenance.
- High quality material. : The machine mainframe is made of stainless steel 304 which is anti-rust and anti-corrosion.
- PLC program Logic Controller. : Provides multiple functions such as automatically turn on and shut down. Ice falling and Ice outgoing automatically, can be connect with automatic ice packing machine or convery belt.
- Leadtime: 40-45days since order is confirmed
- Shipment: We can ship the machine to main ports worldwide, Xam Ice Plant can also arrange customs clearance in destination port or send goods to your premises.
- Warranty: We provides 12months warranty for the main parts.

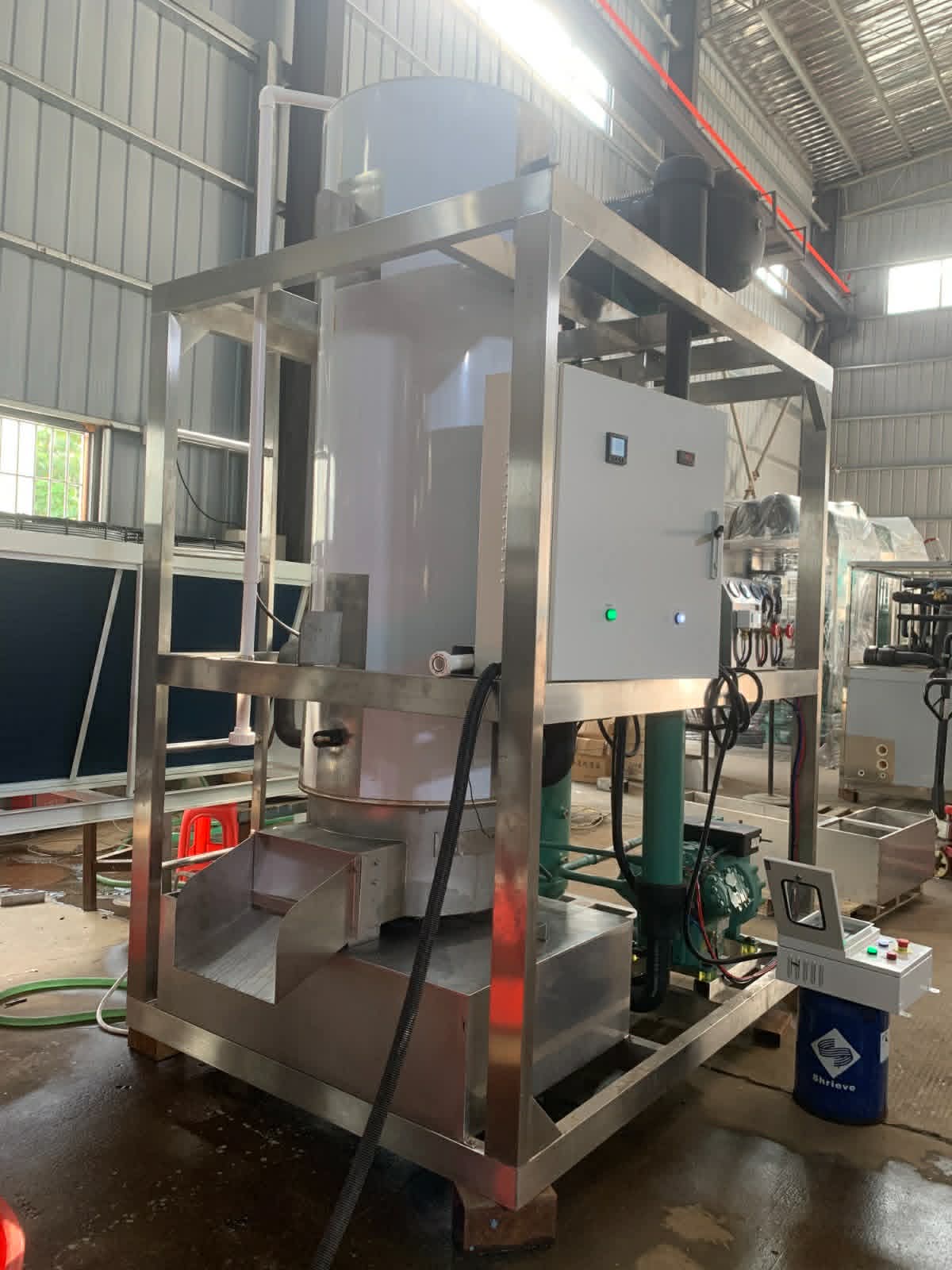

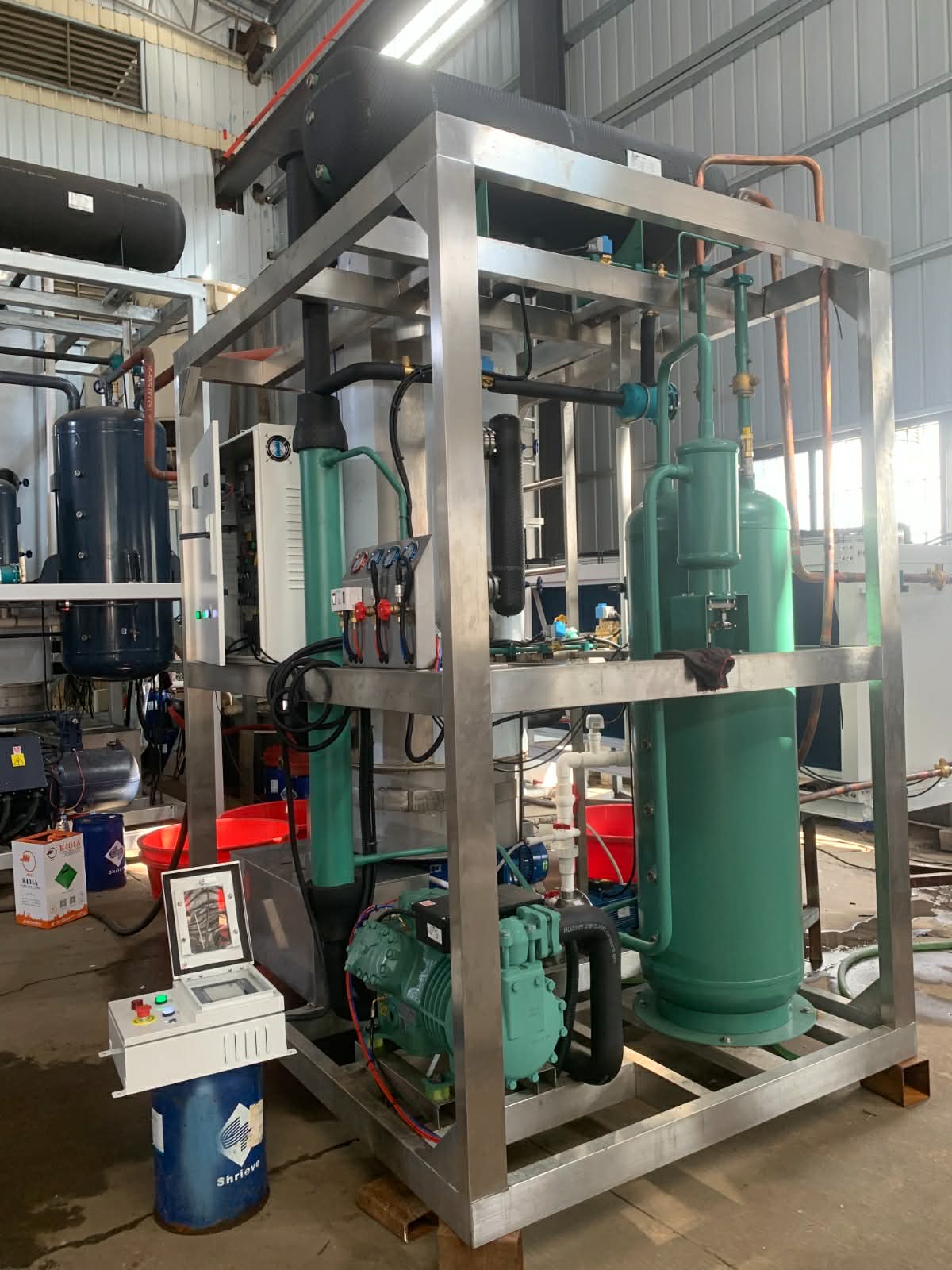

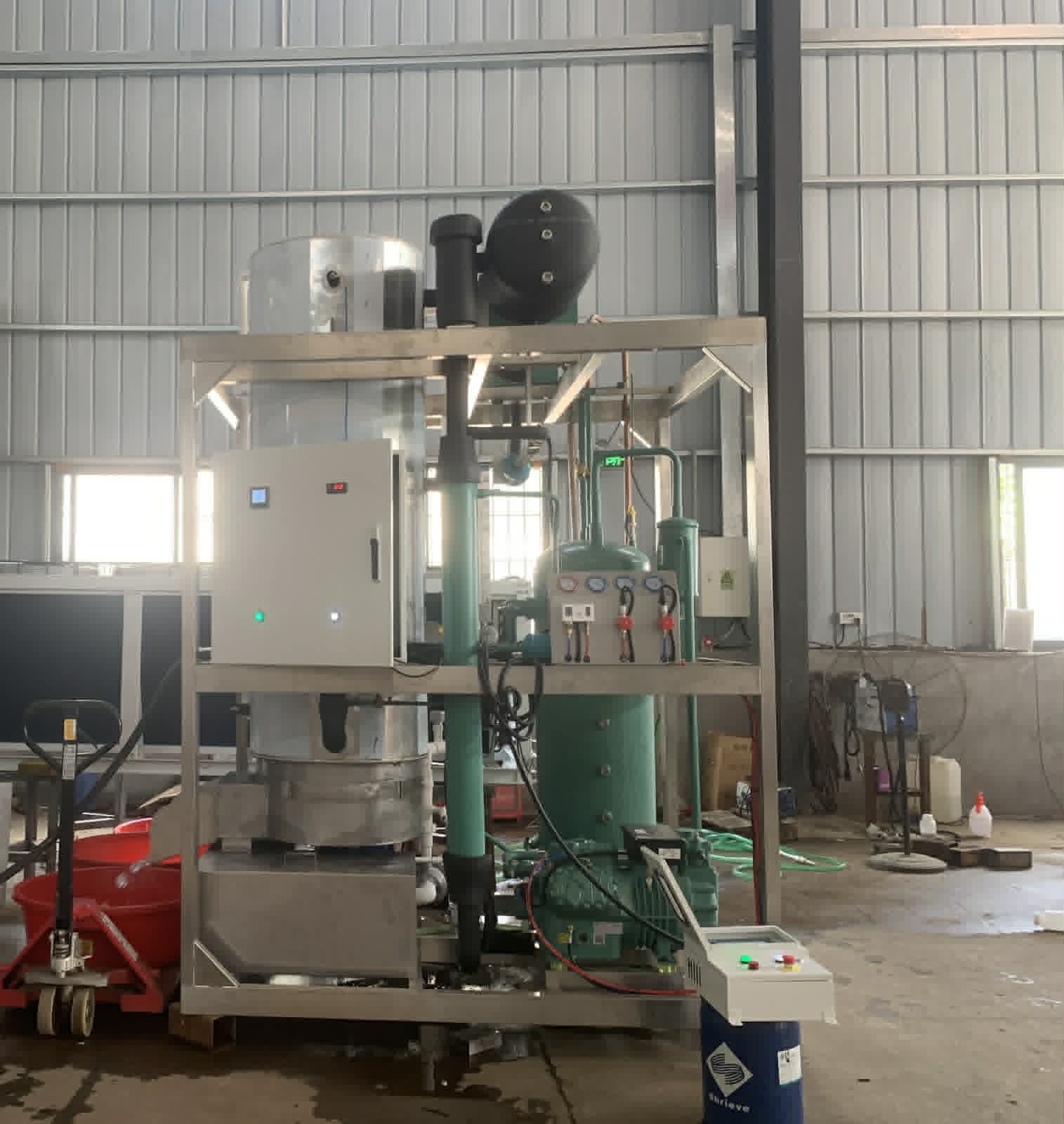

10 ton industrial tube ice machine is a large capacity 10,000kg/24hrs.For this machine,all water and ice contact area of tube ice machine are made from Stainless Steel 304 Grade. It provides corrosion resistance to tubes and makes cleaning of tubes ice machine very easy.
10 Ton Industrial Tube Ice Machine Technical Parameter:
| Machine Capacity | 10,000kg/24 hours |
| Tube Ice Outer Diameter | 28mm,34mm |
| Tube Ice Length | 27mm~50mm |
| Material of Mainframe | Stainless Steel 304 |
| Compressor Brand | Bock(Bitzer/Copeland) |
| Refrigerant | R22 |
| Cooling Way | Water Cooled(Air cooled) |
| Supply Power | 220V~480V, 50Hz/60Hz, 3P |
Machine Power
|
43.58KW |
| Machinery Unit Size (mm) | 2200*1900*2550 |
| Machine Unit Weight(kg) | 3200 |
| Coolig Tower Weight(T) | 50 |
| Warranty | 12 Months |
